Editing the Link Area of a LinkLabel Control



RC-WinTrans supports the editing of the link area of a LinkLabel control (.NET) caption text.



Specifying the link area for the translated control may become necessary if the caption text of a LinkLabel control has been translated, so that the link area as specified for the source caption text does not fit for the translated caption text.



There are two possible ways to edit a link area:

1.

Use the "Link Area" resource type editor (dialog box)- see Figure 3.

2.

Use the external .NET Windows Forms Editor- see Figure 4.

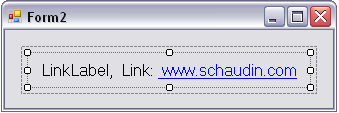

Figure 1:  A simple .NET Window Form with a LinkLabel control.  Here you see the Form as it is shown in the .NET Windows Forms Editor of RC-WinTrans.





Method #1: Editing via the "LinkLabel" Resource Type Editor (Dialog Box)

Edit the link text in the Link Area dialog box, opened as follows:

1.

Select the LinkLabel caption text in the Text Table view (Figure 2).

2.

Select the link area in the Group Items tab view (Figure 2).

3.

Open the Link Area dialog box (Figure 3) by pressing the Resource Type Editor toolbar button () in the Project Window toolbar (Figure 2).

4.

Specify the link area (Figure 3), then confirm and close the dialog box by pressing the OK button

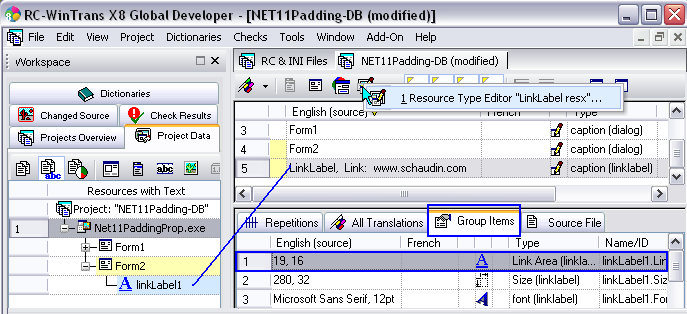

Figure 2:  Click the Resource Type Editor toolbar button in the Text Table view to edit the LinkLabel control in the Link Area dialog box (Figure 3).

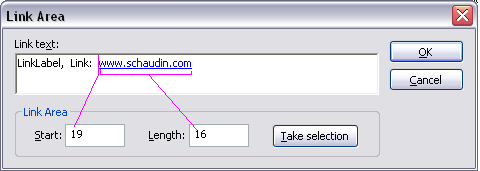

Figure 3:  The Link Area dialog box displaying the LinkLabel caption text "LinkLabel, Link: www.schaudin.com."  Here the text starts at position 19 and has a total length of 16 characters.





Method #2: Editing via the .NET Windows Forms Editor

A link area can also be edited with the External .NET Windows Forms Editor:

1.

Open the Form in the External .NET Editor.

2.

Select the LinkLabel control  and edit the link area in the property grid.

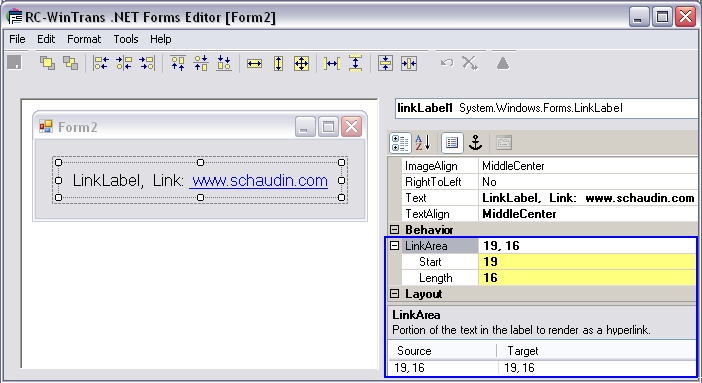

Figure 4:  The .NET Windows Forms Editor with a LinkLabel control selected.  Shown on the right is the property grid where the link area can be edited according to the caption text of the LinkLabel control. Here the text starts at position 19 and has a total length of 16 characters.
